RCinPOWER Smoox 2806 Plus Motor - Choose KV / Color

WREKD ID: 96022

Regular price $30.99
/
  • In Stock
KV
Color
NOTE: This item is on backorder, which means it will be delivered as soon as we receive our next shipment from our supplier. This typically ranges from 1 to 3 weeks.

Earn 120 CaveCoin by purchasing this item.

or Sign Up to start earning on your next order.

  • Delivery Monday, May 20 to Wednesday, May 22
    FREE delivery on most orders over $99. 30 Day Return Policy.
    Ships from: WREKD Warehouse, Ohio, United States

About this item

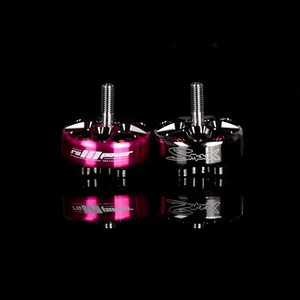

Introducing SmooX 2806 Plus - the new standard in drone motor technology!

Crafted from super-hard aviation aluminum material, the new appearance is both dazzling and beautiful. The optimized aerodynamic structure of the new rotor shape results in lower temperatures, improving motor durability and longevity. With the stator at 2806.5, the power is more powerful and efficient, continuing the solid luxury materials of the GTS v2 series.

The larger imported bearings offer improved durability, stability, and longer motor life compared to motors of the same level. The winding is increased to military-standard temperature-resistant 260°C oxygen-free single crystal copper wire, which improves stability under extreme conditions.

We've extended the use of 2207PLUS to create the first A.I.P and B.F.P damping technology rotor design, which effectively improves the motor's life and flight feel, and reduces flight control burden.

We've also improved throttle linearity, creating a smooth and responsive flight experience that's perfect for extreme sports. With adjusted winding, we've increased efficiency while still maintaining a rapid and powerful dynamic response.

Through repeated tests, we've confirmed that 1750KV is suitable for heavy-load and high-maneuverability freestyle flight with 7-inch propellers, while 1350KV is suitable for long-endurance and high-efficiency voyage FPV. Choose SmooX 2806 Plus for your next drone project and experience the ultimate in performance and reliability!

SPECIFICATIONS

  • KV: 1350
  • Configuration: 12N14P
  • Stator Diameter: 28mm
  • Stator Length: Not specified
  • Shaft Diameter: 6.5mm
  • Motor Dimension (Dia.Len): Ф 34.332.9mm
  • Weight (g): 47 (3cm Wire)
  • Idle Current (10) @ 10V (A): 1.2
  • No. of Cells (Lipo): 4~6S
  • Max Continuous Power (W) 5S: 960
  • Internal Resistance: 58mΩ
  • Max Current (5S): 40A
  • Max. Efficiency Current: (2-6A) > 86%
  • KV: 1750
  • Configuration: 12N14P
  • Stator Diameter: 28mm
  • Stator Length: Not specified
  • Shaft Diameter: 6.5mm
  • Motor Dimension (Dia.Len): Ф 34.332.9mm
  • Weight (g): 47 (3cm Wire)
  • Idle Current (10) @ 10V (A): 1.65
  • No. of Cells (Lipo): 4~6S
  • Max Continuous Power (W) 5S: 1200
  • Internal Resistance: 48mΩ
  • Max Current (5S): 50A
  • Max. Efficiency Current: (3-7A) > 86%
